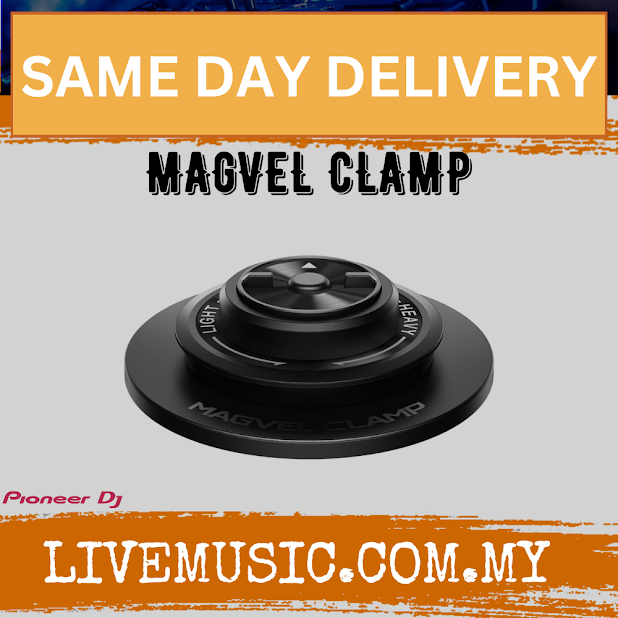

Pioneer DJ MAGVEL CLAMP (HYBRID TURNTABLE Parts)

Main Features

Accessories

Platter

Platter fixing screws

Screwdriver

MAGVEL CLAMP

Slip mat

Slip Sheet

Dust cover

Balance Weights

Sub Weights

Head Shells

Shell Weight

Power cord

Audio cable (ground wire integrated)

USB cable

Quick Start Guide

Precautions for use

?Main Specifications

Width: 453 mm

Height: 159 mm

Depth: 353 mm

Main unit weight: 12.2 kg

Turntable

Drive System: Servo Direct Drive

Turntable: Aluminum die-cast, Diameter: 332 mm

Motor: 3-phase brushless DC motor

Brake system: Electronic brake

Rotation speed: 33 1/3 rpm, 45 rpm

Speed adjustment range: ±8, ±16, ±50

Wah flutter: 0.15 % or less WRMS (JIS WTD)

S/N Ratio: 65 dB (DIN-B)

Starting torque: High: 0.45 N?m (4.5 kgf?cm) or more Mid: 0.32 N?m (3.2 kgf?cm) Low: 0.2 N?m (2.0 kgf?cm)

Startup time: 0.3 sec (at 33 1/3 rpm)

Tone Arm Type

Tone arm type: Universal S-shaped tone arm

Gimbal support type bearing structure: Statically balanced

Overhang: 15 mm

Overhang: 15 mm ?Effective length: 230 mm

Tracking error: 3° or less

Arm height adjustment range: 6 mm

Adjustable needle pressure range: 0-4 g (0.1 g per graduation)

Appropriate cartridge weight: 2.5-12 g (including mounting screw and nut)
